Motivational Tubing Jr Comp/Mini Dragsters

JR Comp Dragsters, Built to Order. Please contact us for more information.


Jr Comp/Mini Dragster Parts

DOWLOAD PICTURES
Jr Comp/Mini Dragster Parts

Arctic Cat F1100T Install

Yamaha RX1 Install

DOWNLOAD PDF CATALOG

Jr Comp Dragster / Mini Dragster Catalog*Catalog data, pricing and content may have changed, please check www.motivationaltubing.com regularly for updated information and a new catalog release, as we are improving our program for our valued customers daily.*



Here is a list of just a few of the specs that are standard...



CHASSIS - 188” W.B., Modular 3 piece w/ spring slipjoint front clip
- 22" wide cage certifiable to SFI 2.7C
- rear clip designed to adapt to most "bike" or "sled" engines
INTERIOR - 22" wide interchangeable semi laydown or laydown seat
- full length floor from bulkhead to beyond seat
STEERING - Specified to accept 1/4 mile dragster standards
- Anglia Style Aluminum Spindles
- Stiletto Rack & Pinion
- SFI Certified Quick Release
- Full Size Aluminum Steering Wheel w/Grips
PEDALS - Easily adjustable pedal asm including brake pedal & throttle pedal set up with dual cables for safety in the event of a stuck carburetor
AXLE - 2" OD 31 Tooth Splined Aluminum Tube (Mini Sprint Style) designed for the high horsepower engines
BRAKES - 10” Dual Rotors
- Wilwood Dual Calipers
- Wilwood Master Cylinder
- Easy pedal location adjustment
BODY - Aluminum body w/ fiberglass nose (the body mtg system allows the chassis to flex without binding on the body)
FRONT TIRES/WHEELS - Any 22" OD full size Front Tires on 17" Wheels
REAR TIRES/WHEELS - Can be set up for 13" Wheels & Tires or 15" Wheels & Tires on 15 bolt mini sprint style hubs
ENGINE - Can be adapted to accept most bike or snowmobile engines

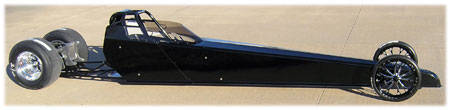

Shown here with full size 17" front wheels & 28.0/10.5-15 rear tires:





For more information or questions about purchasing a car, please call us at 844-904-RACE (7223) or email us.
