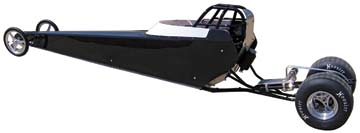

Pinnacle Lite The PINNACLE LITE is the base model in the Pinnacle family, but has the same stand out fit and finish as all the Pinnacle cars. Our objective for this car was to minimize cost without sacrificing quality and performance. Designed for bracket racing, the THREE PIECE chromoly flex chassis provides maximum traction possible without suspension, and it has proven itself to be very consistent. Features of the Pinnacle Lite
Being part of the Pinnacle family means that the Pinnacle Lite is fully upgradable at any time with any of the other Pinnacle components, including the DTMS or Fox Shock suspension system, without cutting or welding.
The flex chassis has been designed and tested to reduce high stress and still allow flex in order to maintain safety and strength.
The Pinnacle Lite features a center pull chain drive for reliability, a single 10” brake rotor mounted to the side and a slightly wider stance for greater stability.
The front clip features a 4 bar design, light weight steel spindles with oil impregnated bronze kingpin bushings and 6º camber, rack and pinion steering and M-T spun aluminum front wheels, all designed to help your car go straight down the track. The 4 piece body is made of black, prepainted aluminum and has an ABS nose and lexan windshield. Mounts are standard for an optional 75# “Permanent” ballast tank for all those out there trying to slow your cars to the index. The Pinnacle Lite has all the above features plus…… :
For questions about purchasing a car, call us at |
